biconnected_components / articulation_points

Computes the biconnected components and articulation points of an undirected graph.

Complexity: O(V + E)
Defined in: <boost/graph/biconnected_components.hpp>

Example

#include <boost/graph/adjacency_list.hpp>
#include <boost/graph/biconnected_components.hpp>
#include <iostream>

struct Edge { int comp; };

int main() {
    using namespace boost;
    using Graph = adjacency_list<vecS, vecS, undirectedS, no_property, Edge>;

    Graph g(5);
    add_edge(0, 1, g);
    add_edge(1, 2, g);
    add_edge(2, 0, g);  // triangle
    add_edge(2, 3, g);
    add_edge(3, 4, g);
    add_edge(4, 2, g);  // second triangle

    // Bundled component index written via member-pointer property map.
    auto num = biconnected_components(g, get(&Edge::comp, g));

    std::cout << "Biconnected components: " << num << "\n";
    for (auto ei = edges(g).first; ei != edges(g).second; ++ei) {
        std::cout << "  " << source(*ei, g) << "-" << target(*ei, g)
                  << " component " << g[*ei].comp << "\n";
    }
}
Biconnected components: 2
  0-1 component 1
  1-2 component 1
  2-0 component 1
  2-3 component 0
  3-4 component 0
  4-2 component 0

biconnected_components (1)

template <typename Graph, typename ComponentMap, typename OutputIterator,
          typename DiscoverTimeMap, typename LowPointMap>
std::pair<std::size_t, OutputIterator>
biconnected_components(
    const Graph& g, ComponentMap comp, OutputIterator out,
    DiscoverTimeMap discover_time, LowPointMap lowpt);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

ComponentMap comp

The algorithm computes how many biconnected components are in the graph, and assigning each component an integer label. The algorithm then records which component each edge in the graph belongs to by recording the component number in the component property map. The ComponentMap type must be a model of Writable Property Map. The value type should be an integer type, preferably the same as the edges_size_type of the graph. The key type must be the graph’s edge descriptor type.

OUT

OutputIterator out

The algorithm writes articulation points via this output iterator and returns the resulting iterator.
Default: a dummy iterator that ignores values written to it.

UTIL/OUT

DiscoverTimeMap discover_time

The discovery time of each vertex in the depth-first search. The type DiscoverTimeMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.

UTIL/OUT

LowPointMap lowpt

The low point of each vertex in the depth-first search, which is the smallest vertex reachable from a given vertex with at most one back edge. The type LowPointMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.

biconnected_components (2)

template <typename Graph, typename ComponentMap, typename OutputIterator>
std::pair<std::size_t, OutputIterator>
biconnected_components(
    const Graph& g, ComponentMap comp, OutputIterator out);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

ComponentMap comp

The algorithm computes how many biconnected components are in the graph, and assigning each component an integer label. The algorithm then records which component each edge in the graph belongs to by recording the component number in the component property map. The ComponentMap type must be a model of Writable Property Map. The value type should be an integer type, preferably the same as the edges_size_type of the graph. The key type must be the graph’s edge descriptor type.

OUT

OutputIterator out

The algorithm writes articulation points via this output iterator and returns the resulting iterator.
Default: a dummy iterator that ignores values written to it.

biconnected_components (3)

template <typename Graph, typename ComponentMap>
std::size_t biconnected_components(
    const Graph& g, ComponentMap comp);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

ComponentMap comp

The algorithm computes how many biconnected components are in the graph, and assigning each component an integer label. The algorithm then records which component each edge in the graph belongs to by recording the component number in the component property map. The ComponentMap type must be a model of Writable Property Map. The value type should be an integer type, preferably the same as the edges_size_type of the graph. The key type must be the graph’s edge descriptor type.

biconnected_components (4)

template <typename Graph, typename ComponentMap, typename OutputIterator,
          typename P, typename T, typename R>
std::pair<std::size_t, OutputIterator>
biconnected_components(
    const Graph& g, ComponentMap comp, OutputIterator out,
    const bgl_named_params<P, T, R>& params);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

ComponentMap comp

The algorithm computes how many biconnected components are in the graph, and assigning each component an integer label. The algorithm then records which component each edge in the graph belongs to by recording the component number in the component property map. The ComponentMap type must be a model of Writable Property Map. The value type should be an integer type, preferably the same as the edges_size_type of the graph. The key type must be the graph’s edge descriptor type.
Default: dummy_property_map.

OUT

OutputIterator out

The algorithm writes articulation points via this output iterator and returns the resulting iterator.
Default: a dummy iterator that ignores values written to it.
Named Parameters
Direction Parameter Description

IN

vertex_index_map(VertexIndexMap i_map)

This maps each vertex to an integer in the range [0, num_vertices(g)). The type VertexIndexMap must be a model of Readable Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: get(vertex_index, g)

UTIL/OUT

discover_time_map(DiscoverTimeMap discover_time)

The discovery time of each vertex in the depth-first search. The type DiscoverTimeMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

lowpoint_map(LowPointMap lowpt)

The low point of each vertex in the depth-first search, which is the smallest vertex reachable from a given vertex with at most one back edge. The type LowPointMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

predecessor_map(PredecessorMap p_map)

The predecessor map records the depth first search tree. The PredecessorMap type must be a Read/Write Property Map whose key and value types are the same as the vertex descriptor type of the graph.
Default: an iterator_property_map created from a std::vector of vertex_descriptor of size num_vertices(g) and using get(vertex_index, g) for the index map.

IN

visitor(DFSVisitor vis)

A visitor object that is invoked inside the algorithm at the event-points specified by the DFS Visitor concept. The visitor object is passed by value [1].
Default: dfs_visitor<null_visitor>

biconnected_components (5)

template <typename Graph, typename ComponentMap,
          typename P, typename T, typename R>
std::size_t
biconnected_components(
    const Graph& g, ComponentMap comp,
    const bgl_named_params<P, T, R>& params);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

ComponentMap comp

The algorithm computes how many biconnected components are in the graph, and assigning each component an integer label. The algorithm then records which component each edge in the graph belongs to by recording the component number in the component property map. The ComponentMap type must be a model of Writable Property Map. The value type should be an integer type, preferably the same as the edges_size_type of the graph. The key type must be the graph’s edge descriptor type.
Default: dummy_property_map.
Named Parameters
Direction Parameter Description

IN

vertex_index_map(VertexIndexMap i_map)

This maps each vertex to an integer in the range [0, num_vertices(g)). The type VertexIndexMap must be a model of Readable Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: get(vertex_index, g)

UTIL/OUT

discover_time_map(DiscoverTimeMap discover_time)

The discovery time of each vertex in the depth-first search. The type DiscoverTimeMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

lowpoint_map(LowPointMap lowpt)

The low point of each vertex in the depth-first search, which is the smallest vertex reachable from a given vertex with at most one back edge. The type LowPointMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

predecessor_map(PredecessorMap p_map)

The predecessor map records the depth first search tree. The PredecessorMap type must be a Read/Write Property Map whose key and value types are the same as the vertex descriptor type of the graph.
Default: an iterator_property_map created from a std::vector of vertex_descriptor of size num_vertices(g) and using get(vertex_index, g) for the index map.

IN

visitor(DFSVisitor vis)

A visitor object that is invoked inside the algorithm at the event-points specified by the DFS Visitor concept. The visitor object is passed by value [1].
Default: dfs_visitor<null_visitor>

articulation_points (1)

template <typename Graph, typename OutputIterator>
OutputIterator articulation_points(
    const Graph& g, OutputIterator out);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

OutputIterator out

The algorithm writes articulation points via this output iterator and returns the resulting iterator.
Default: a dummy iterator that ignores values written to it.

articulation_points (2)

template <typename Graph, typename OutputIterator,
          typename P, typename T, typename R>
OutputIterator articulation_points(
    const Graph& g, OutputIterator out,
    const bgl_named_params<P, T, R>& params);
Direction Parameter Description

IN

const Graph& g

An undirected graph. The graph type must be a model of Vertex List Graph and Incidence Graph.

OUT

OutputIterator out

The algorithm writes articulation points via this output iterator and returns the resulting iterator.
Default: a dummy iterator that ignores values written to it.
Named Parameters
Direction Parameter Description

IN

vertex_index_map(VertexIndexMap i_map)

This maps each vertex to an integer in the range [0, num_vertices(g)). The type VertexIndexMap must be a model of Readable Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: get(vertex_index, g)

UTIL/OUT

discover_time_map(DiscoverTimeMap discover_time)

The discovery time of each vertex in the depth-first search. The type DiscoverTimeMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

lowpoint_map(LowPointMap lowpt)

The low point of each vertex in the depth-first search, which is the smallest vertex reachable from a given vertex with at most one back edge. The type LowPointMap must be a model of Read/Write Property Map. The value type of the map must be an integer type. The vertex descriptor type of the graph needs to be usable as the key type of the map.
Default: an iterator_property_map created from a std::vector of vertices_size_type of size num_vertices(g) and using get(vertex_index, g) for the index map.

UTIL/OUT

predecessor_map(PredecessorMap p_map)

The predecessor map records the depth first search tree. The PredecessorMap type must be a Read/Write Property Map whose key and value types are the same as the vertex descriptor type of the graph.
Default: an iterator_property_map created from a std::vector of vertex_descriptor of size num_vertices(g) and using get(vertex_index, g) for the index map.

IN

visitor(DFSVisitor vis)

A visitor object that is invoked inside the algorithm at the event-points specified by the DFS Visitor concept. The visitor object is passed by value [1].
Default: dfs_visitor<null_visitor>

Description

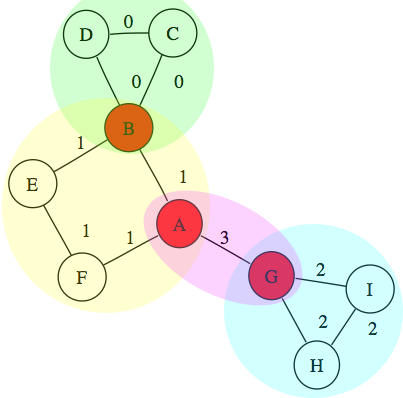

A connected graph is biconnected if the removal of any single vertex (and all edges incident on that vertex) can not disconnect the graph. More generally, the biconnected components of a graph are the maximal subsets of vertices such that the removal of a vertex from a particular component will not disconnect the component. Unlike connected components, vertices may belong to multiple biconnected components: those vertices that belong to more than one biconnected component are called articulation points or, equivalently, cut vertices. Articulation points are vertices whose removal would increase the number of connected components in the graph. Thus, a graph without articulation points is biconnected. The following figure illustrates the articulation points and biconnected components of a small graph:

biconnected

Vertices can be present in multiple biconnected components, but each edge can only be contained in a single biconnected component. The output of the biconnected_components algorithm records the biconnected component number of each edge in the property map comp. Articulation points will be emitted to the (optional) output iterator argument to biconnected_components, or can be computed without the use of a biconnected component number map via articulation_points. These functions return the number of biconnected components, the articulation point output iterator, or a pair of these quantities, depending on what information was recorded.

The algorithm implemented is due to Tarjan [36].

Returns

Depending on the overload:

  • biconnected_components overloads returning std::pair<std::size_t, OutputIterator> return the number of biconnected components and the output iterator past the last articulation point written.

  • biconnected_components overloads returning std::size_t return the number of biconnected components.

  • articulation_points overloads return the OutputIterator past the last articulation point written.

Notes

[1] Since the visitor parameter is passed by value, if your visitor contains state then any changes to the state during the algorithm will be made to a copy of the visitor object, not the visitor object passed in. Therefore you may want the visitor to hold this state by pointer or reference.
